XSR85-NB202 Hybrid
XSR85-NB202 Hybrid

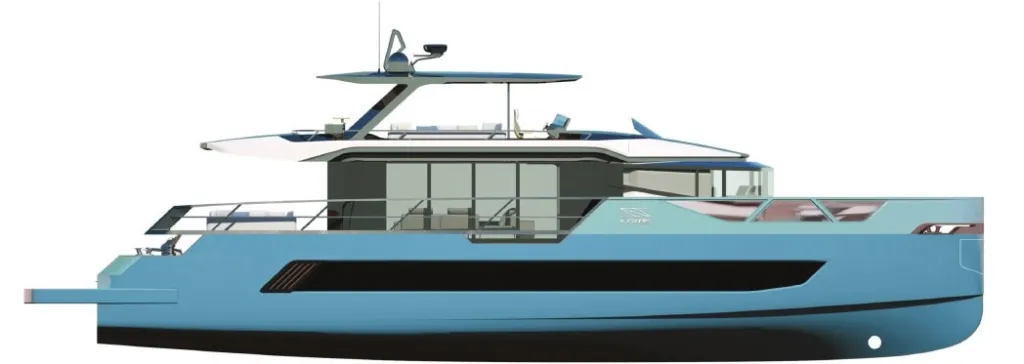

General Arrangement
OWNER'S SUITE
Full-beam Owner's suite with separate office, his & her closets, his & her bathrooms.
VIP CABINS
Two VIP cabins with bathrooms and refined mountain chalet styling.
GUEST CABINS
Two twin guest cabins each with one Pullman bed and bathroom.
CREW QUARTERS
Dedicated crew accommodation for 9 in 5 cabins.
Classification: ABS +A1 Commercial Yachting Service +AMS MCA Large Commercial Yacht Code LY2
Technical Specifications
DIMENSIONS
Length Overall
25.70 meters
Beam Overall
6.46 meters
Draft
1.80 meters
Displacement (Half Load)
~80 tons
PROPULSION
Main Engines
2 x MAN i6 - 800 bhp @2300 rpm
Generators
2 x Kohler 70kW
Gearbox
2 x ZF 550 - 1 V, 2.95:1 ratio
Propellers
-
TECHNICAL DETAILS
Max Speed
22 Knots
Range @ 12 Knots
1,000 NM
Fuel Capacity
7,850 L
Fresh Water
2,250 L
ACCOMMODATION
Guest Capacity
8 Guests
Cabin Count
-
Crew Complement
4 Crew
Owner's Area
Full-beam Cabin
Begin Your Journey
Our team of consultants is ready to discuss the customization possibilities for your next yacht project. Request the XSR85-NB202 Hybrid specification brochure or visit our shipyard.
