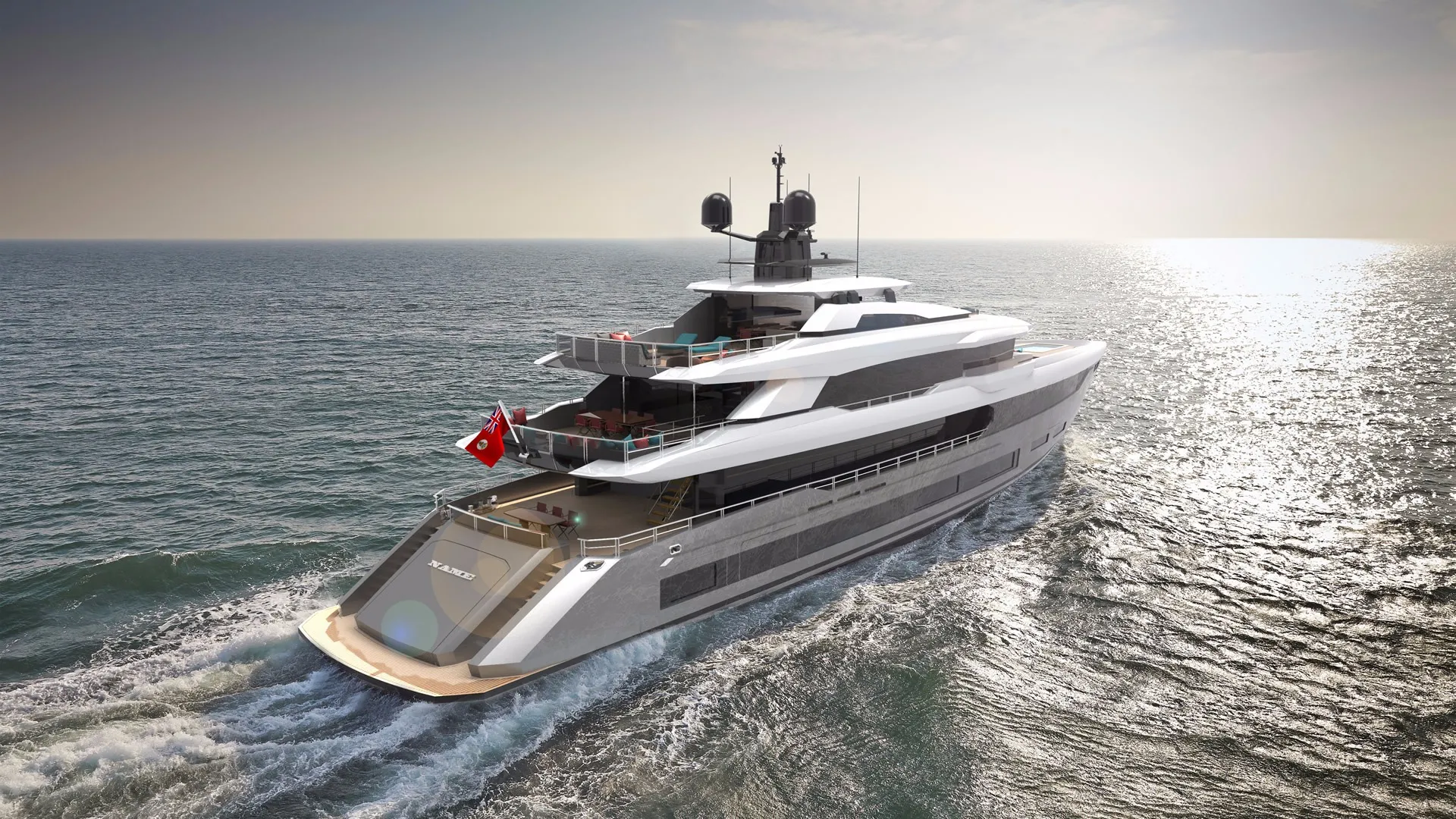

MSHALE 56
MSHALE 56

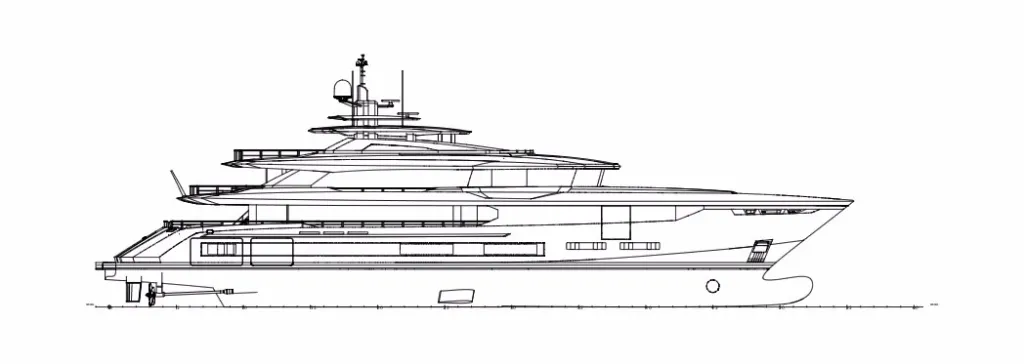

General Arrangement
OWNER'S SUITE
Full-beam Owner's suite with separate office, his & her closets, his & her bathrooms.
VIP CABINS
Two VIP cabins with bathrooms and refined mountain chalet styling.
GUEST CABINS
Two twin guest cabins each with one Pullman bed and bathroom.
CREW QUARTERS
Dedicated crew accommodation for 9 in 5 cabins.
Classification: ABS +A1 Commercial Yachting Service +AMS MCA Large Commercial Yacht Code LY2
Technical Specifications
DIMENSIONS
Length Overall
56.50 meters
Beam Overall
10.40 meters
Draft
2.90 meters
Displacement (Half Load)
~790 tons
PROPULSION
Main Engines
2 x 1600bhp
Generators
2 x 200kW
Gearbox
2 x ZF, Reintjes (4:1)
Propellers
2 x 1180 bkW
TECHNICAL DETAILS
Max Speed
16 Knots
Range @ 12 Knots
4,000 NM
Fuel Capacity
90,000 L
Fresh Water
20,000 L
ACCOMMODATION
Guest Capacity
12 Guests
Cabin Count
-
Crew Complement
15 Crew
Owner's Area
Full-beam Suite
Begin Your Journey
Our team of consultants is ready to discuss the customization possibilities for your next yacht project. Request the MSHALE 56 specification brochure or visit our shipyard.
SHIPYARD
Antalya Free Zone, Turkey
