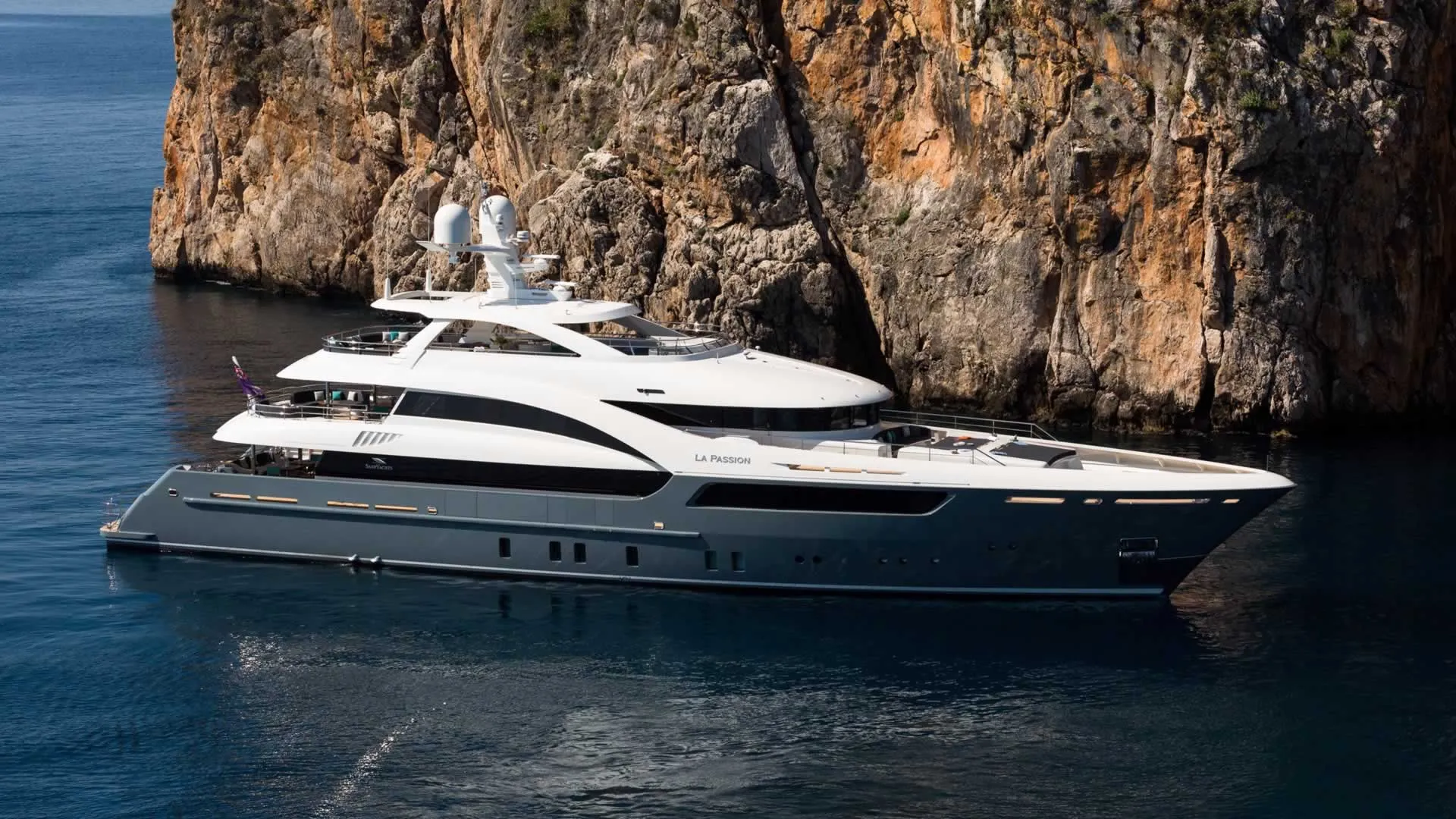

La Passion
Yachts/Completed

La Passion

Yachts/Completed

La Passion

Her shape and size are carefully refined to stay just below the 500 gross ton mark. Steel was the obvious choice for a strong and reliable hull with ample tank capacity. However we opted for epoxy composite to construct our curvy superstructure. By this way, we could save weight from superstructure and fairing compound. All these became a reality thanks to the diligence and experience of team.

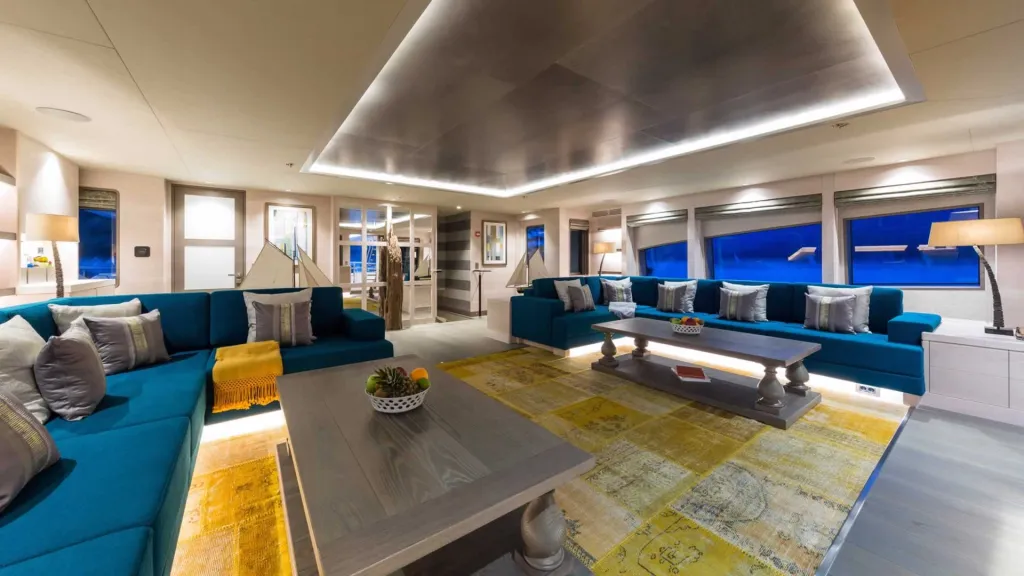

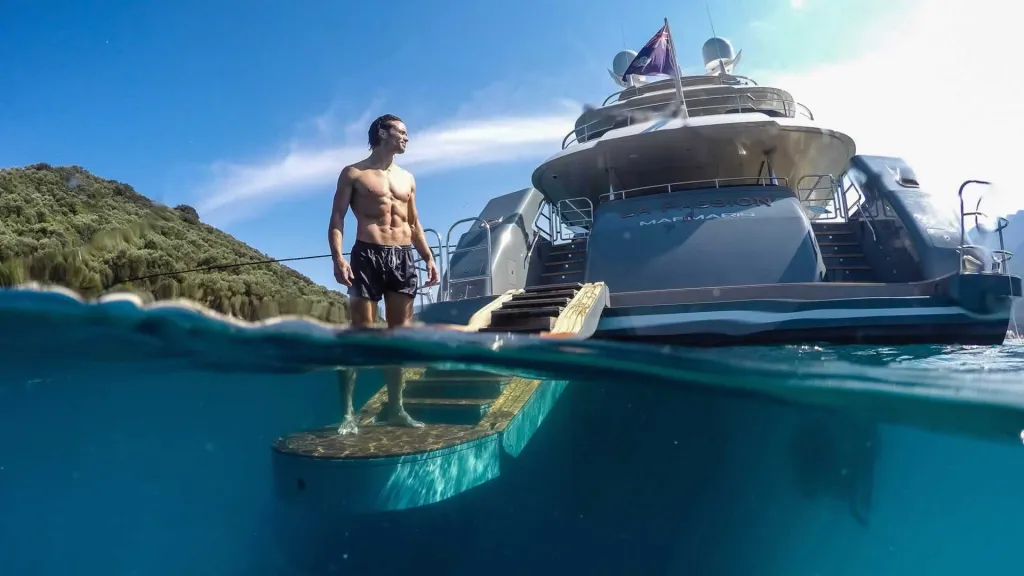

Deck Detail
Deck Detail
Deck Detail
Deck Detail
Deck Detail
Deck Detail
NAVAL ARCHITECTURE

General Arrangement

La Passion General Arrangement Technical Drawing
01

OWNER'S SUITE

Full-beam Owner's suite with separate office, his & her closets, his & her bathrooms.

02

VIP CABINS

Two VIP cabins with bathrooms and refined mountain chalet styling.

03

GUEST CABINS

Two twin guest cabins each with one Pullman bed and bathroom.

04

CREW QUARTERS

Dedicated crew accommodation for 9 in 5 cabins.

Classification: ABS +A1 Commercial Yachting Service +AMS MCA Large Commercial Yacht Code LY2

ENGINEERING PRECISION

Technical Specifications

DIMENSIONS

Length Overall
46.00 meters

Beam Overall
9.00 meters

Draft
2.40 meters

Displacement (Half Load)
~400 tons

PROPULSION

Main Engines
2 x CAT 1000bhp

Generators
2 x 200 kW CAT

Gearbox
2 x Reinjes (4:1)

Propellers
5-bladed nibral

TECHNICAL DETAILS

Max Speed
14.8 Knots

Range @ 12 Knots
3,200 NM

Fuel Capacity
56,900 L

Fresh Water
12,000 L

ACCOMMODATION

Guest Capacity
10 Guests

Cabin Count
5 Staterooms

Crew Complement
9 Crew

Owner's Area
Full-beam Suite



Exterior Design

Exterior Design

Osman Tanju Kalaycıoğlu

Her shape and size are carefully refined to stay just below the 500 gross ton mark. Steel was the obvious choice for a strong and reliable hull with ample tank capacity. However we opted for epoxy composite to construct our curvy superstructure. By this way, we could save weight from superstructure and fairing compound. All these became a reality thanks to the diligence and experience of team.

Her hull was analysed in depth by CTO of Gdansk using cfd and tank test methods for low resistance and reduced wave profile. Watertight integrity was paramount in our design agenda, hence we have incorporated at least two additional watertight bulkheads and cofferdams into our hull structure. On the other hand many hours were spent honing the styling with 3d design tools. Even a scale model was built to iron out any discrepancies. With our in house design and engineering team each stage of outfitting is carefully planned and executed ensuring a quality level enviable even by established European yards.

We have approached a relatively young but very well established designer to be the chef of our interior. Adam Lay’s yet another innovative, natural and welcoming interior creation will be manufactured by another industry legend, Hasan Ulutaş. There are obviously many trades that I cannot list here, but I can see into the future assured of success because we have convened the best possible team under the Sarp umbrella.

Normally building a custom yacht in Turkey is very good value for money, but this is not enough for our dreams. We have set ourselves a philosophy to pursue the best of quality and attain the top finish.

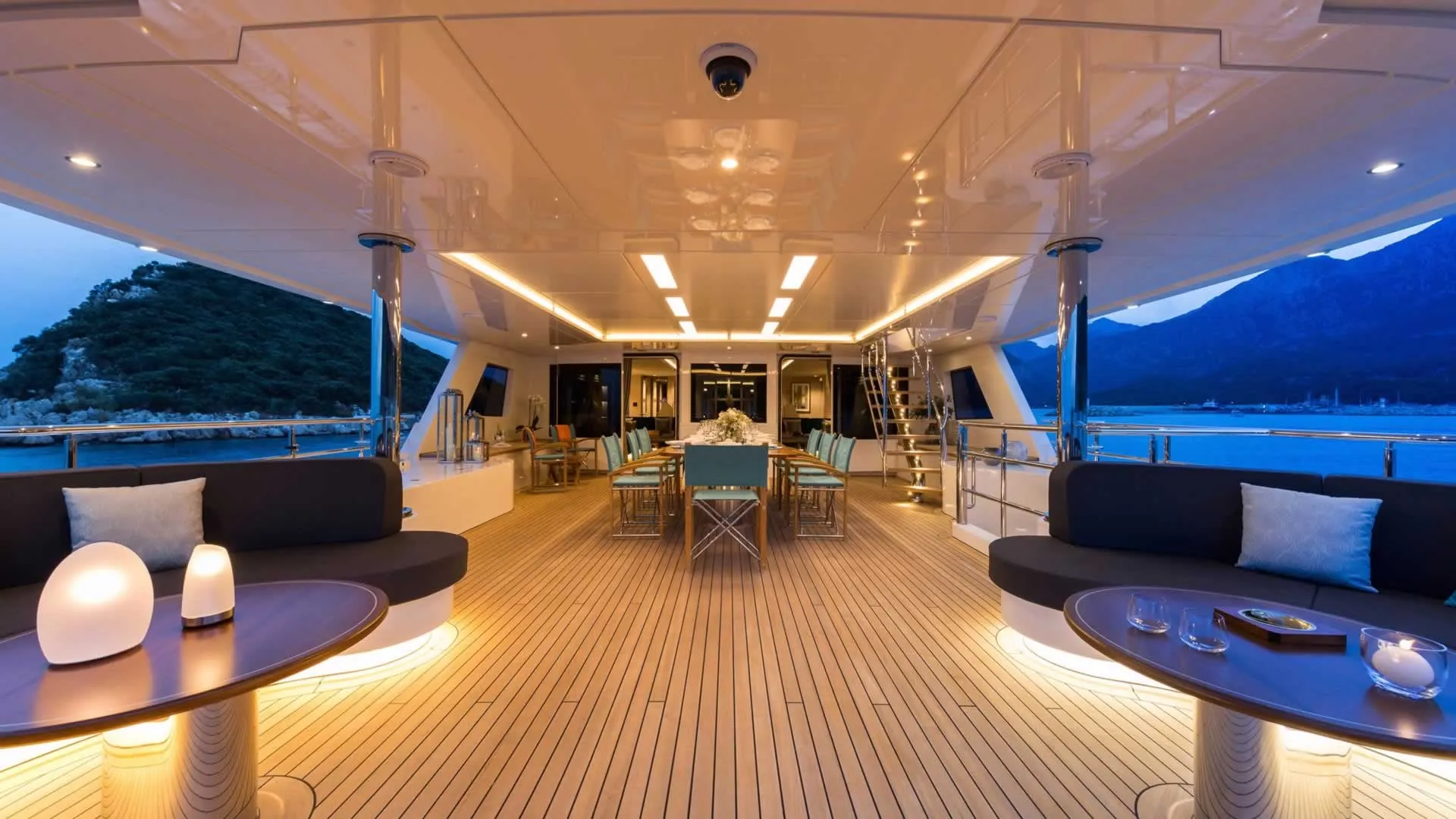

Interior Design

Interior Design

Adam Lay

Created by Adam Lay Studio, the interior of Sarp Yachts’ new 46m motor yacht blends loft apartment styling and mountain chalet influences with a combination of high end natural timber and metal finishes. The aim was to produce a sophisticated and elegant interior, interwoven with clean simplicity of design that results in an inviting, comfortable and relaxing atmosphere.

Taking inspiration from natural materials and textures, open grained planked wooden floors, quality leathers and intricatemetal detailing produce a distinguished colour palette of rich dark bronzes, silvers and grey stained ash veneer. The theme is extended throughout the yacht. Large screens feature in the main saloon entrance with petrified patterned leaves set between sheets of clear glass. Wall finishes are a balance of wooden planks and pewter coloured slubby silk wall paper. Customised to suit the décor in each cabin, satin nickel door and cabinet hardware add a touch of refined sparkle to the calm and comfortable backdrop. Honed stone tiles and flooring in the bathrooms compliment the fine Dornbracht tapware and accessories. Pebbles inlayed into the bathroom floor add further texture. Well chosen furniture includes Minotti sofas, Glyn Peter Machin and Giorgetti chairs. Superior fabrics by Rubelli, Weitzner, Lelievre, Chase Erwin, Romo, Kravet and Armani Casa tie the interior together with highlights of bright colour, bold graphics and accents. Intended to make a sophisticated statement with a strong visual impact, the outcome is a wonderful marriage of harmonious and clean lined design combined with subtle textures, tones and finishes that delight the senses.
ADAM LAY STUDIO – JANUARY 2013
